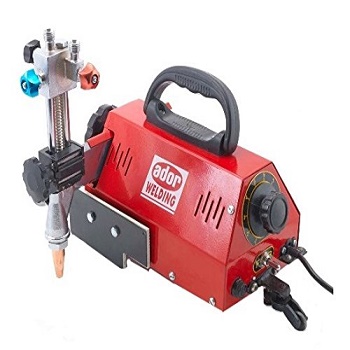

PORTABLE GAS CUTTING MACHINE

Pid: pid_9

Contact Download

 price on request

Availability : In stock

- Unique design with louvers for ventilation which reduces overheating of motor and electrical parts.

- Unbreakable,smooth and precise horizontal and vertical adjustment of torch.

- Bevel setting with locking facility ensures bevel accuracy during continuous cutting operation.

  • Cutting Capacity

    Up to 75 mm thick Plate

  • Straight Cutting

    In 1.8 meters length or its multiples by adding extra track.

  • Circle Cutting (Optional)

    From Ø150 mm to Ø1200 mm.

  • Bevel Cutting

    Up to 45°, 50 mm thick plate

  • Cutting Speed

    Min.: 0-200 mm/min.(approx) Max.: 800-1000 mm/min.(approx.)

  • Horizontal Adjustment of Cutting Torch

    80 mm

  • Vertical Adjustment of Cutting Torch

    60 mm

  • Weight of the machine

    8 Kgs. (Approx.)

  • Unique design with louvers for ventilation which reduces overheating of motor and electrical parts.
  • Unbreakable,smooth and precise horizontal and vertical adjustment of torch.
  • Bevel setting with locking facility ensures bevel accuracy during continuous cutting operation.
  • Heat reflector with air gap, which protects the motor and other electrical parts from overheating.
  • Non-metallic moulded lifting handle, hence machine can be lifted easily even if when it is hot.
  • .Travels on standard 1.8 meter long extruded Aluminium rail track
  • Versatile light weight and rugged machine designed for long, trouble free operation.
